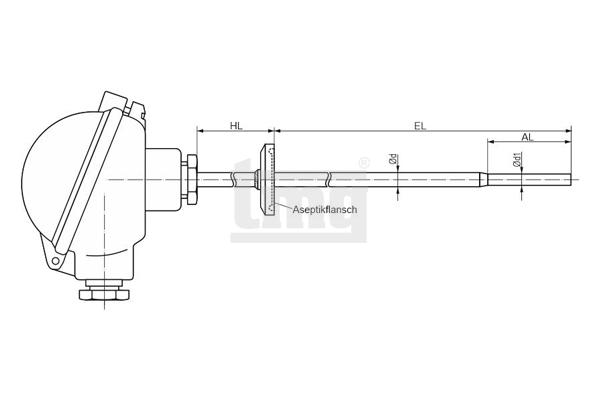

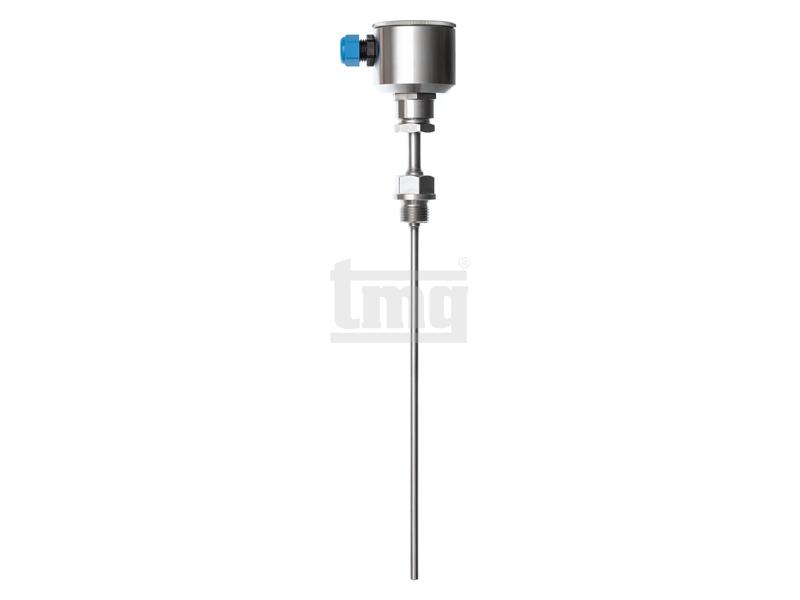

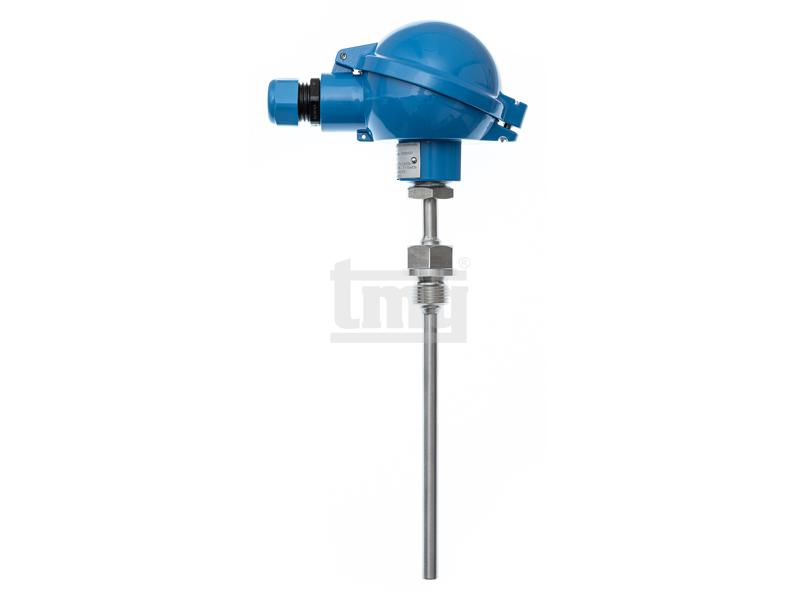

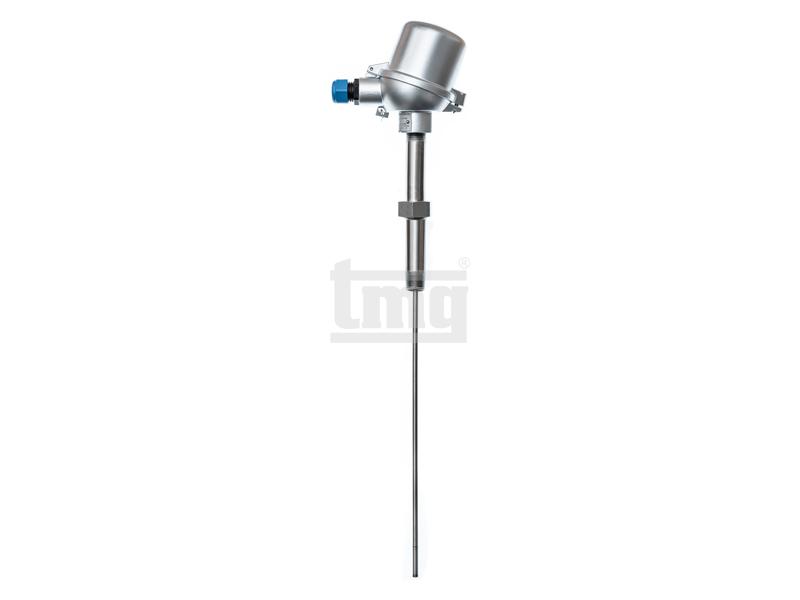

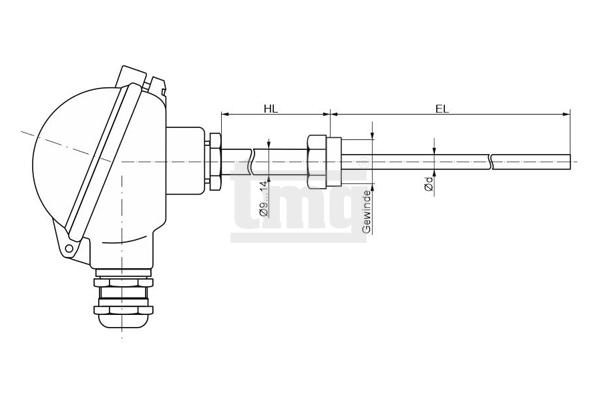

built-in temperature sensor with connection head or plug

Temperature sensors of the V/U...a system are used to measure the temperature of gaseous or liquid process media in mechanical and plant engineering.
The V/U...a series offers a wide range of resistance thermometers and thermocouples as built-in sensors for welding, screwing or flanging into technical vessels or piping systems.

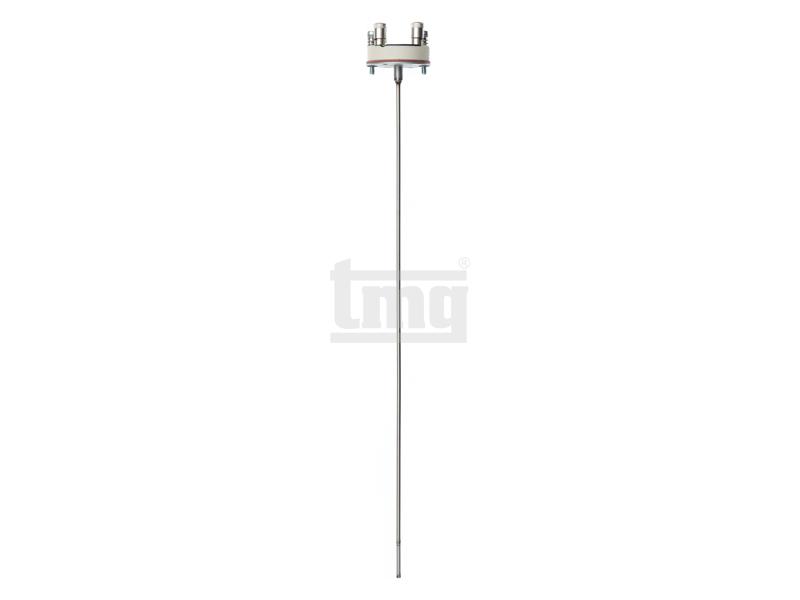

In addition to the temperature probes, the type series includes measuring inserts which are intended for installation in sealed metal fittings and in this installation constellation determine the temperature of the medium to be measured.

Measuring range:

  • -40...+1200°C (depending on the sensor element used and the design selected)

Measuring tip:

  • from Ø3 mm

Individual selection:

  • of measuring inserts, process connections and protection tubes for the respective installation conditions

Connection types:

  • connection head or connection box with/without transmitter, connector

Special designs:

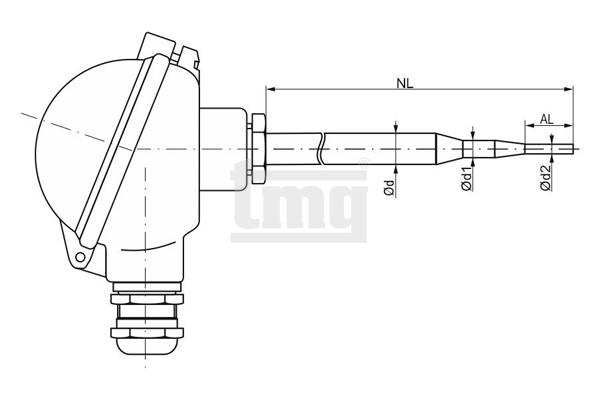

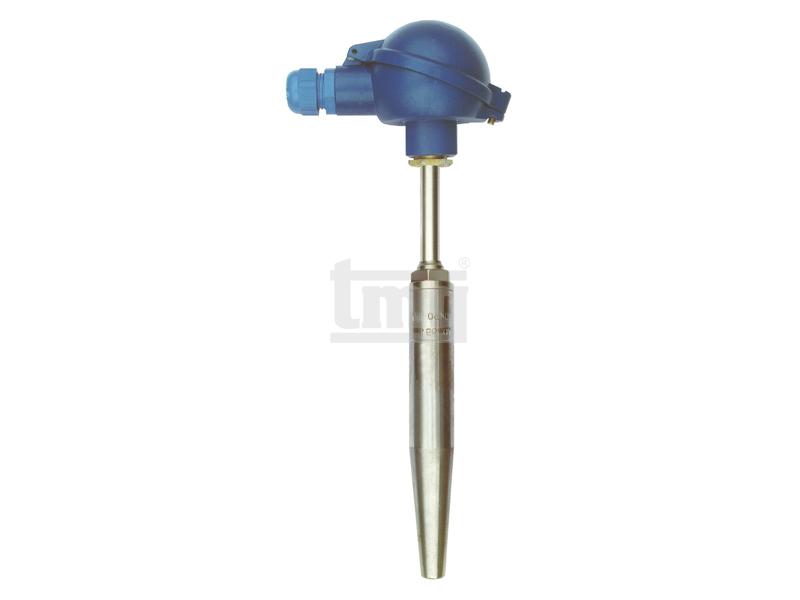

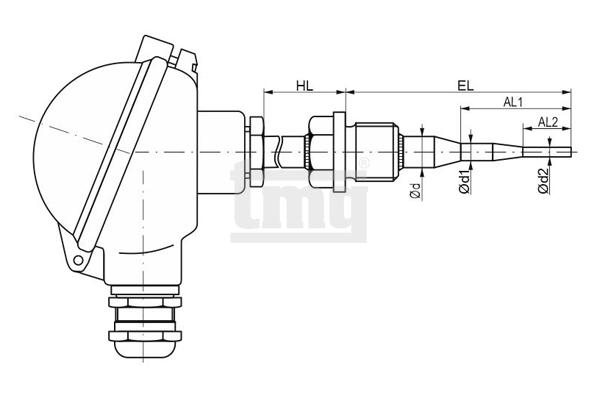

  • tapered probe tips to optimise response time
  • highly vibration-resistant screw-in thermometers for applications with heavy mechanical loads
  • thermometer with test channel (ppr version) for process control during operation
  • screw-in thermometer with separable neck tube
  • coating of the immersed or media-contacting protective tube area with a non-conductive coating (non-stick coatings and corrosion protection)

Explosion protection (gas and dust atmospheres):

  • intrinsic safety, zone 0 and 1
  • ATEX, IECEx, EAC Ex

products

VD57 / UD57
Weld-in resistance thermometer or thermocouple with neck tube, replaceable spring-loaded measuring insert and protection tube D1...D6 (DIN 43772)

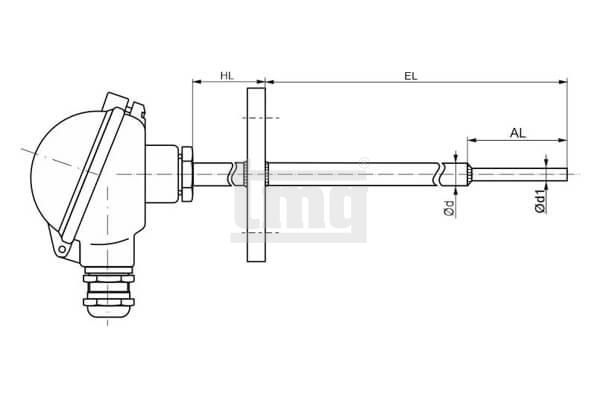

VF51 / UF51

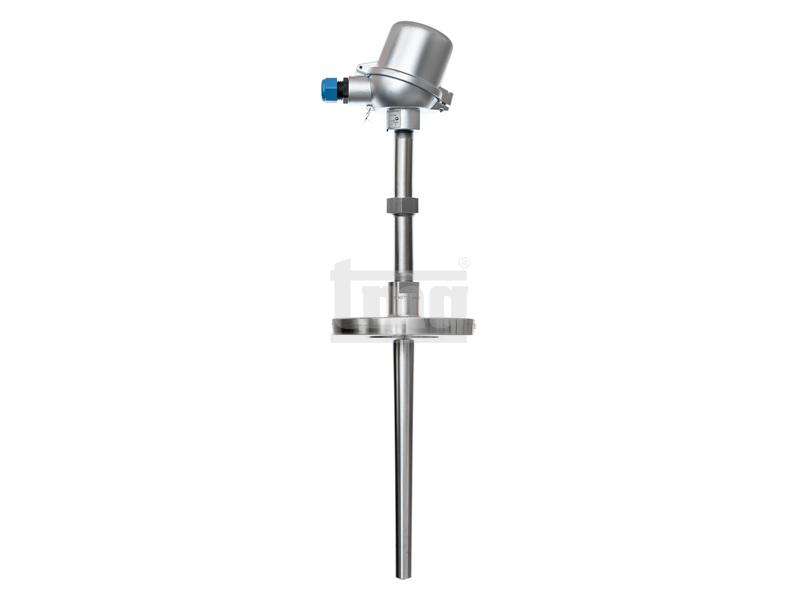

Flanged resistance thermometer or thermocouple with neck tube, replaceable spring-loaded measuring insert and hammered-off protection tube

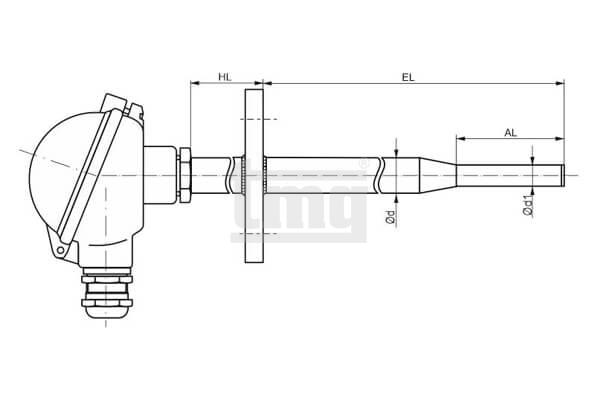

VF52 / UF52
Flanged resistance thermometer or thermocouple with neck tube, replaceable spring-loaded measuring insert and stepped protection tube

VF54 / UF54
Flanged resistance thermometer or thermocouple with neck tube, replaceable spring-loaded measuring insert and straight protection tube

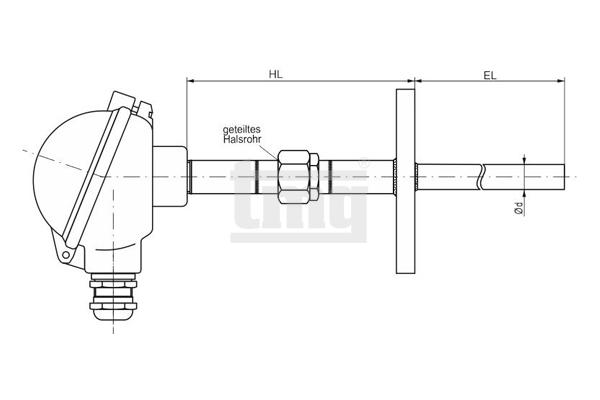

VF57 / UF57

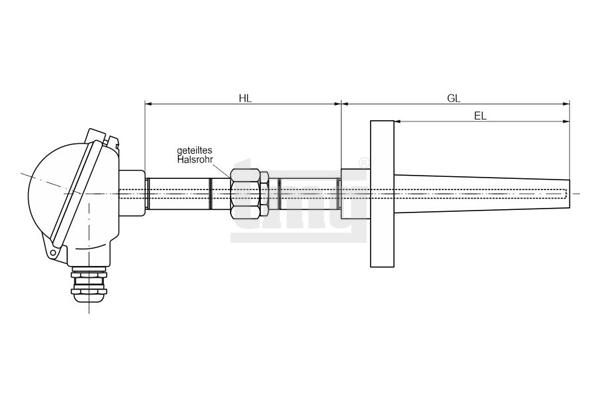

Flanged resistance thermometer with split neck tube interchangeable measuring insert and conical protection tube

VF81…88
Resistance thermometer with clamp flange

VH20 / UH20
Screw-in resistance thermometer or thermocouple with neck tube, replaceable spring-loaded measuring insert and screw-in thread for protection tube

VH30
Screw-in resistance thermometer with neck tube, non-replaceable, measuring insert and straight protection tube

VH31
Screw-in resistance thermometer with neck tube, non-replaceable measuring insert and stepped protection tube

VH51 / UH51
Screw-in resistance thermometer or thermocouple with neck tube, replaceable spring-loaded measuring insert and hammered-off protection tube

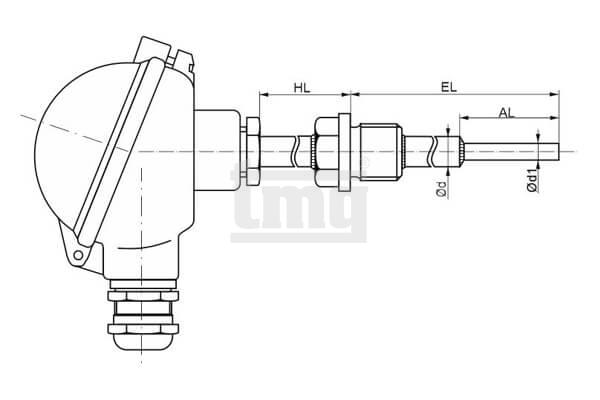

VH52 / UH52
Screw-in resistance thermometer or thermocouple with neck tube, replaceable spring-loaded measuring insert and stepped protection tube

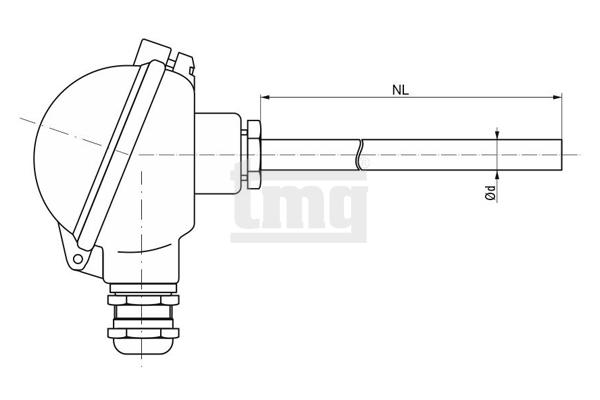

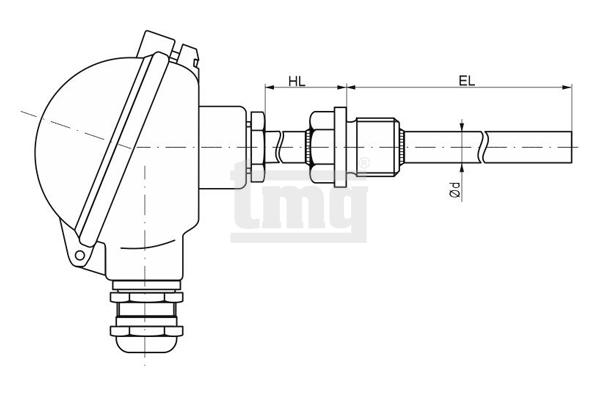

VH54 / UH54
Screw-in resistance thermometer or thermocouple with neck tube, replaceable spring-loaded measuring insert and straight protection tube

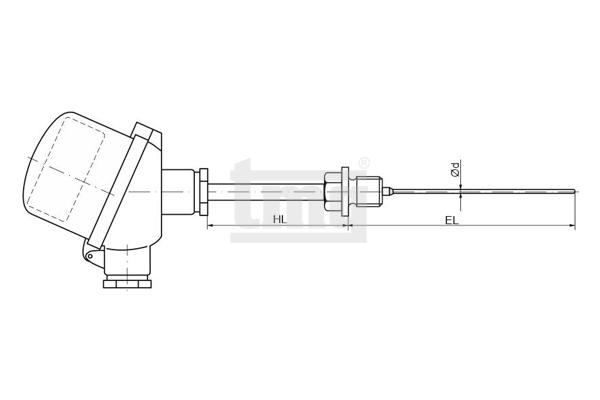

VH70

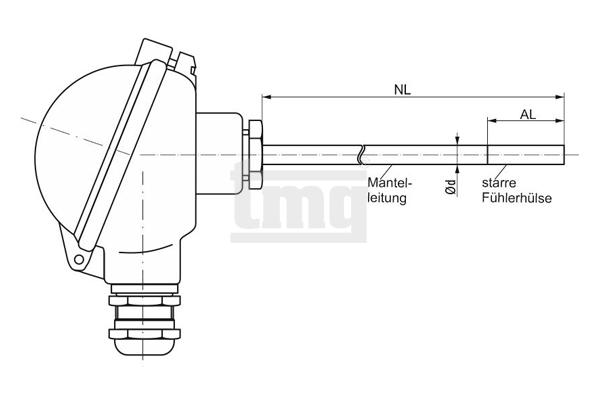

Screw-in resistance thermometer with neck tube and sheathed cable

VO31
Resistance thermometer without direct process connection with non-interchangeable measuring insert, multiple offset

VO51 / UO51
Resistance thermometer or thermocouple without direct process connection with replaceable, spring-loaded measuring insert and hammered-off protection tube

VO52 / UO52
Resistance thermometer or thermocouple without direct process connection with replaceable, spring-loaded measuring insert and stepped protection tube

VO54/ UO54
Resistance thermometer or thermocouple without direct process connection with replaceable, spring-loaded measuring insert, and straight protection tube

VO61
Resistance thermometer without direct process connection with non-replaceable measuring insert

VO73
Resistance thermometer without direct process connection with non-replaceable measuring insert (sheathed cable)

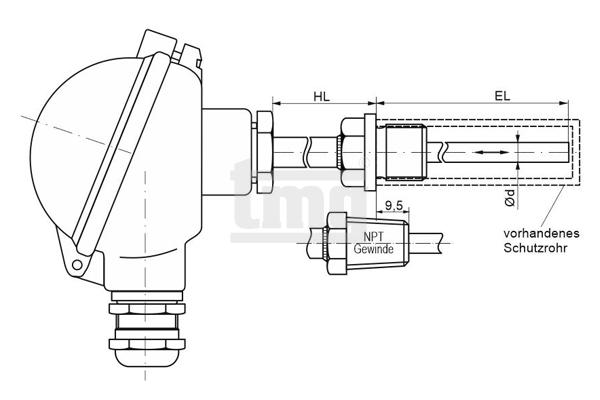

VÜ48 / UÜ48
Screw-in resistance thermometer or thermocouple with neck tube, replaceable spring-loaded measuring insert and union nut for thermowell mounting
